Panel info | Product name | Square Lcd Screen |

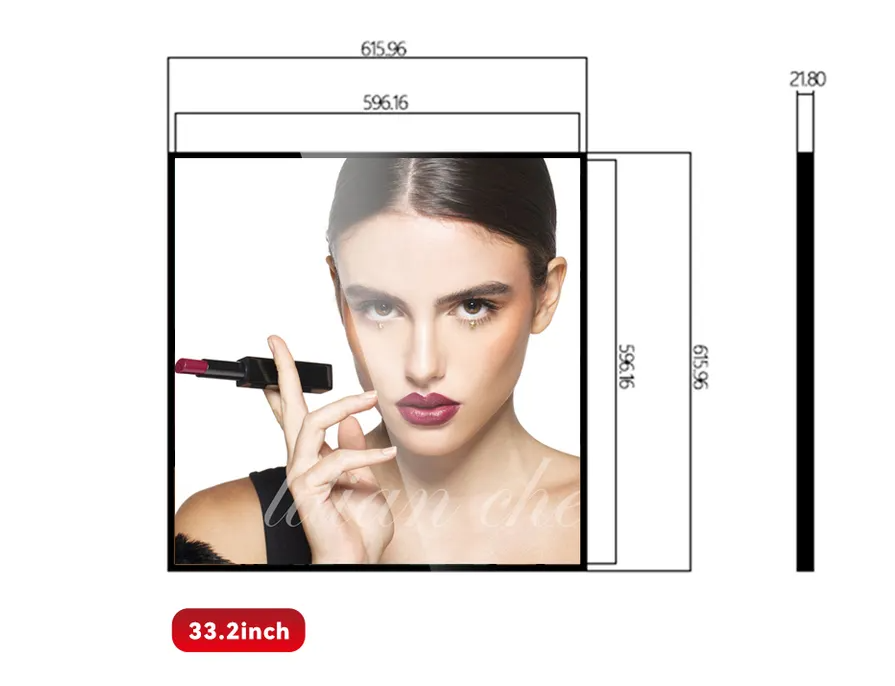

Display Outline Size(mm) | 614.76*614.76*24.9 |
Display Area(mm) | 596.16(H)*596.16(V) |
Resolution | 1920*1920 |
Brightness | 500CD/㎡ |
Pixel Pitch | 0.3105 |
Contract Ratio | 1000:1 |
Screen Ratio | 1:1 |
Display Mode | Normally Black, ADS, Transmissive, Matte |
View Angle | 89/89/89/89 U/D/L/R |
System | CPU | Rockchip RK3288 quad-core Cortex-A17, clocked up to 1.8GHz |
Operating System | Android 7.1 |
RAM/ROM | 2G/8G (NAND Flash) |

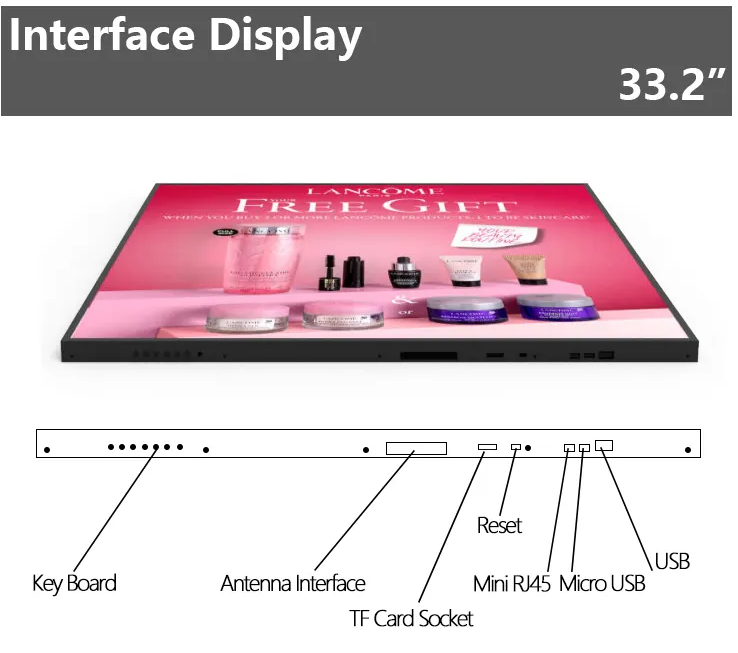

Interface | Card Socket | 1PCS PUSH-PUSH TF Card Socket |
USB | 2PCS: USB & USB OTG |
RJ45 | 1PCS |
HDMI OUT | 1PCS |
HP | 1PCS |
DC IN | 1PCS |
Internet | LAN | 100M network port, support 4G interface (Mini-PCIE), with SIM card holder |
Bluetooth | BIE V4.0 |
Media play | Video Format | Support wmv、avi、flv、rm、rmvb、mpeg、ts、mp4.. |
Picture Format | Support BMP、JPEG、PNG、GIF.. |
